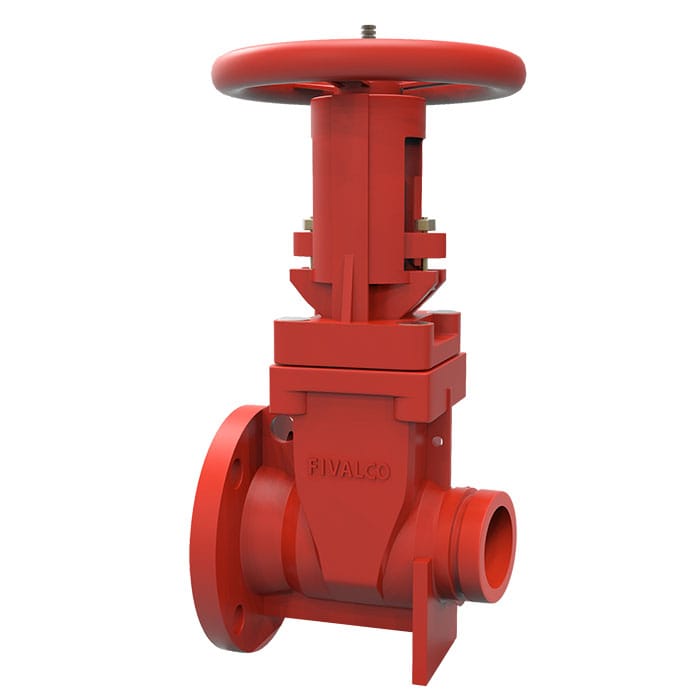

Material Specification
| Name | Material |
| Body | Ductile Iron ASTM A536 65-45-12 |
| Wedge | Ductile Iron ASTM A536 65-45-12 +EPDM |
| Wedge Nut | Stainless Steel AISI 304 |
| Stem | Stainless Steel AISl304/420 |
| Bonnet | Ductile Iron ASTM A536 65-45-12 |
| Gasket | EPDM |
| Packing | Graphite |
| Stem Nut | Bronze ASTM B62 |
| Handwheel | Ductile Iron ASTM A536 65-45-12 |

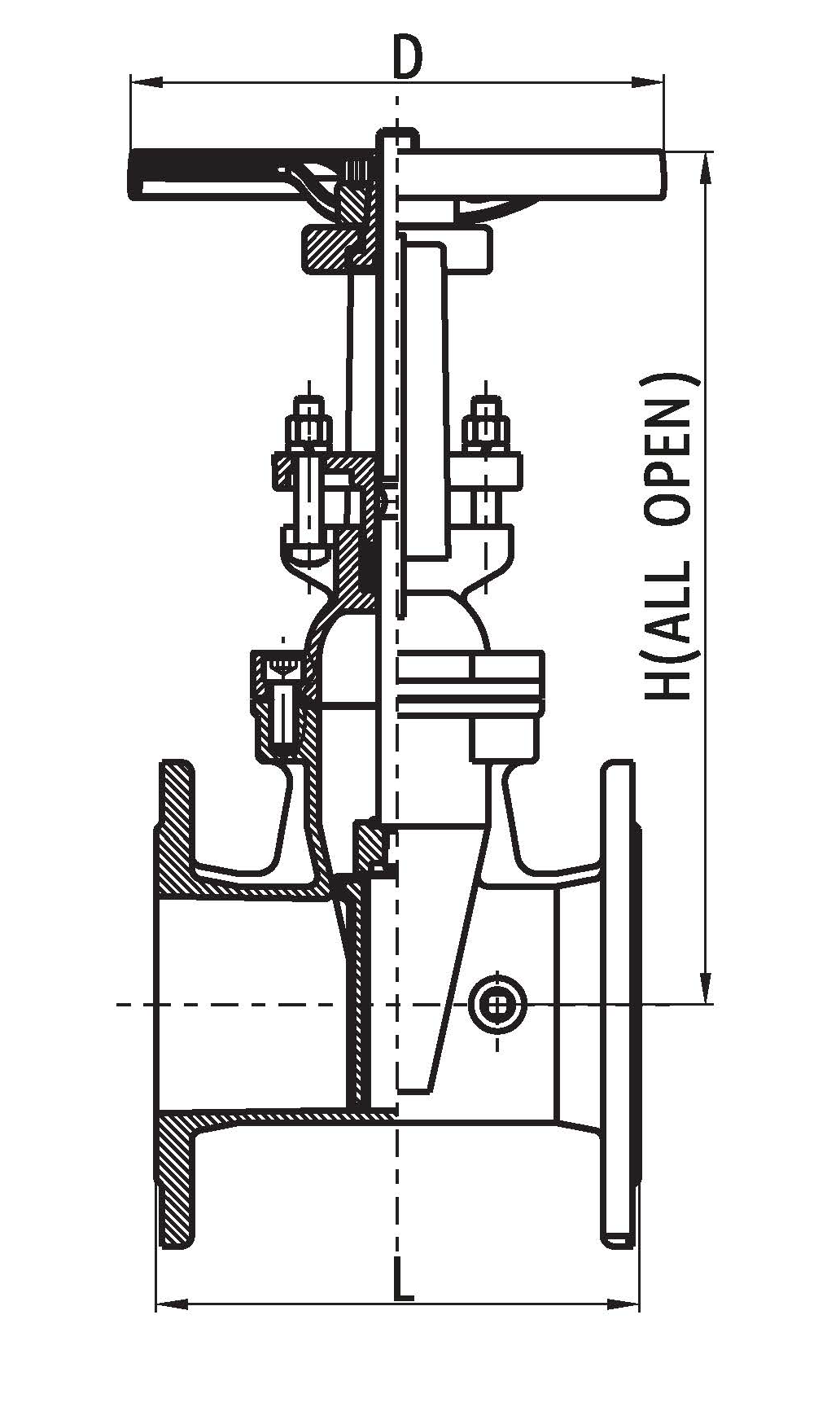

DIMENSIONS (inch/mm)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| L | 7.00/178 | 7.50/191 | 8.00/203 | 9.00/229 | 10.00/254 | 10.50/267 | 11.50/292 | 13.00/330 | 14.00/356 |
| H | 16.18/411 | 16.18/411 | 18.19/462 | 20.24/514 | 24.76/629 | 27.91/709 | 36.18/919 | 43.94/1116 | 51.18/1300 |
| D | 7.20/183 | 7.20/183 | 9.96/253 | 9.96/253 | 12.05/306 | 12.05/306 | 13.98/355 | 17.52/445 | 17.52/445 |
| D3 | 2.37/60.3 | 2.87/73 2.99/76.1 | 2.37/88.9 | 4.5/114.3 | 5.56/141.3 5.5/139.7 | 6.63/168.3 6.5/165.1 | 8.63/219.1 | 10.75/273 | 12.75/323.9 |
Net Weight (kg) & Crate qty (pcs)
| Size | 2″/50 | 2.5″/65 | 3″/80 | 4″/100 | 5″/125 | 6″/150 | 8″/200 | 10″/250 | 12″/300 |
| N.W. | 17.64 | 18.91 | 22.13 | 27.16 | 40.30 | 46.90 | 72.00 | 111.00 | 167 |
| Create Qty | 25 | 25 | 16 | 16 | 9 | 9 | 6 | 4 | 2 |
NOTES
1. Valve is rated at 300PSI for Fire Protection Service.
2. Design and materials are subject to change without notice.
