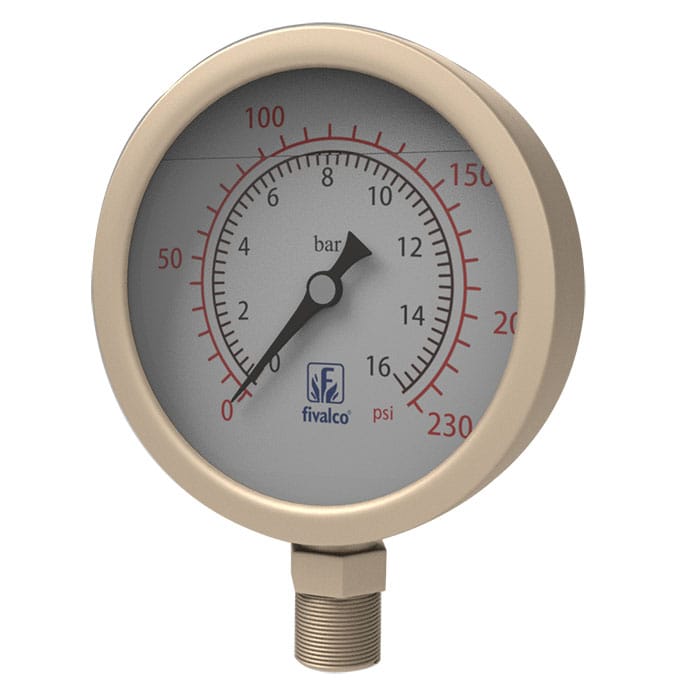

SPECIFICATIONS
| FP31 | FP32 | |
|---|---|---|
| Dial Size | 2½”(65mm)/4″(100mm) | 2½”(65mm)/4″(100mm) |
| Case | Stainless Steel 304 | Stainless Steel 304 |
| Bezel | Stainless Steel 304 | Stainless Steel 304 |
| Socket | Brass | Stainless Steel 316 |
| Connection | BSPT 1/4″ for 2½”Dial | BSPT 1/4″ for 2½”Dial |
| BSPT 3/8″ for 4″Dial | BSPT 1/2″ for 4″Dial | |
| Lens | Polycarbonate | Polycarbonate |
| Pointer | Aluminium, Black | Aluminium, Black |
| Scale Unit | Dual Scale in bar &psi | Dual Scale in bar &psi |
| Bourdon Tube | Phosphor Bronze | Stainless Steel 316 |
| Movement | Brass | Stainless Steel 316 |
| Working Pressure | Maximum 75% of Full Scale Value | Maximum 75% of Full Scale Value |
| Process Temperature | 0°C … 60°C | 0°C … 100°C |
| Accuracy | +/-1.6% of Full Scale Value | +/-1.6% of Full Scale Value |
| Protection | IP 65 | IP 65 |
| Filling Liquid | Glycerin | Glycerin |
PRODUCT IDENTIFICATION CODE
| FP31 | – | 100 | x | 10 | . | 0/16 | ||
| Type/Model | Stainless Steel Casing and Brass Socket | FP31 | ||||||
| Stainless Steel Casing and Socket | FP32 | |||||||
| Dial | 65mm (2½”) | 065 | ||||||
| 100mm (4″) | 100 | |||||||
| Connection | 6mm (1/4″) | 06 | ||||||
| 10mm (3/8″) | 10 | |||||||
| 15mm (1/2″) | 15 | |||||||
| Pressure Range | -760mmHg…4bar ; -30inHg…60psi | C/04 | ||||||
| 0…7bar ; 0…100psi | 0/07 | |||||||
| 0…10bar ; 0…150psi | 0/10 | |||||||
| 0…16bar ; 0…230psi | 0/16 | |||||||
| 0…20bar ; 0…300psi | 0/20 | |||||||
| 0…30bar ; 0…430psi | 0/30 |
