SPECIFICATIONS
| Dial Size | 3″ (80mm) |
| 4″ (100mm) | |
| Stem Length (Including thread) | 2.5″ (65mm) |
| 4″ (100mm) | |
| 6″ (150mm) | |
| Case | Zinc Plated Steel |
| Bezel | FT21 – Zinc Plated Steel |
| FT22 – Stainless Steel | |
| Lens | Glass |
| Bulb | Copper Alloy |
| Stem | Brass |

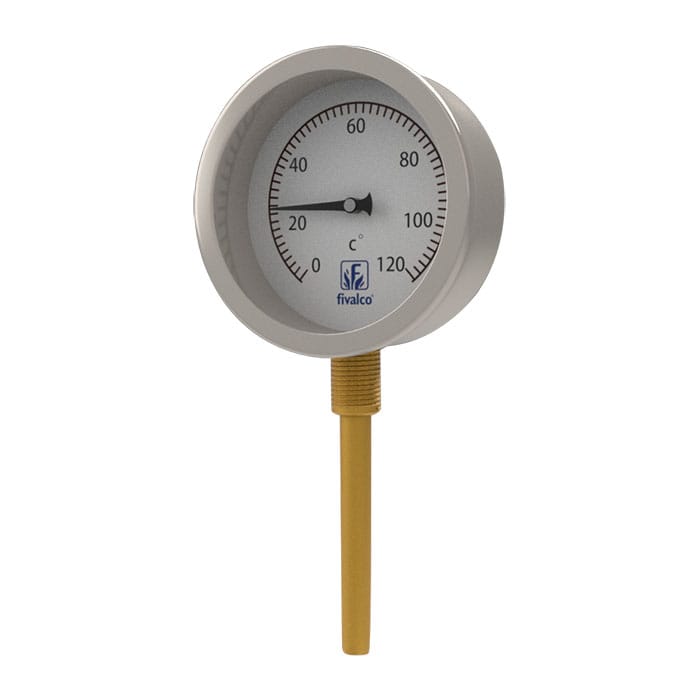

| Connection | FT21 – 1/2″ BSPT Bottom |

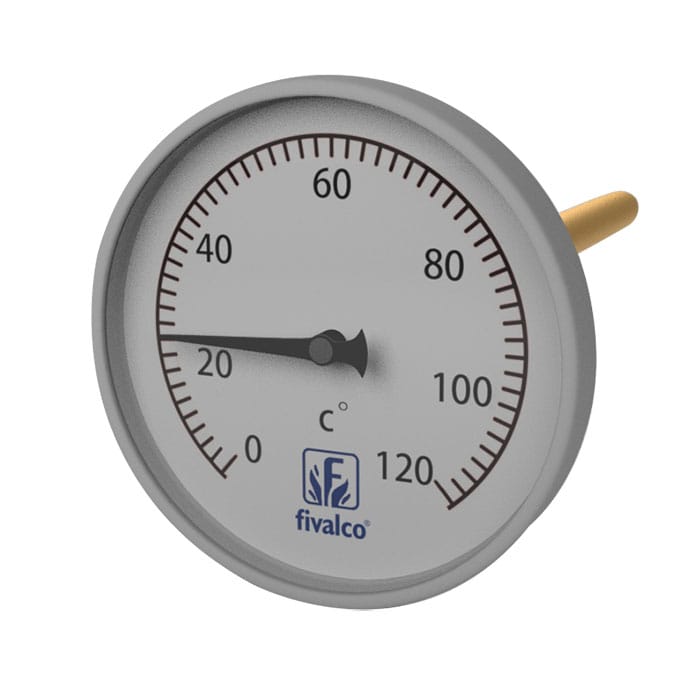

| FT22 – 1/2″ BSPT Center Back | |
| Accuracy | +/- 2% of Full Scale Value |
PRODUCT IDENTIFICATION CODE
| FT21 | – | 100 | x | 065 | . | 0/120 | ||
| Type/Model | Bottom Connection | FT21 | ||||||
| Center Back Connection | FT22 | |||||||
| Dial Size | 80mm (3″) | 080 | ||||||
| 100mm (4″) | 100 | |||||||
| Stem Length | 65mm (2.5″) | 065 | ||||||
| 100mm (4″) | 100 | |||||||
| 150mm (6″) | 150 | |||||||
| Temperature Range | 0°C…120°C | 0/120 | ||||||
| -30°C…50°C | 030/50 | |||||||
| -40°C…40°C | 040/40 |
