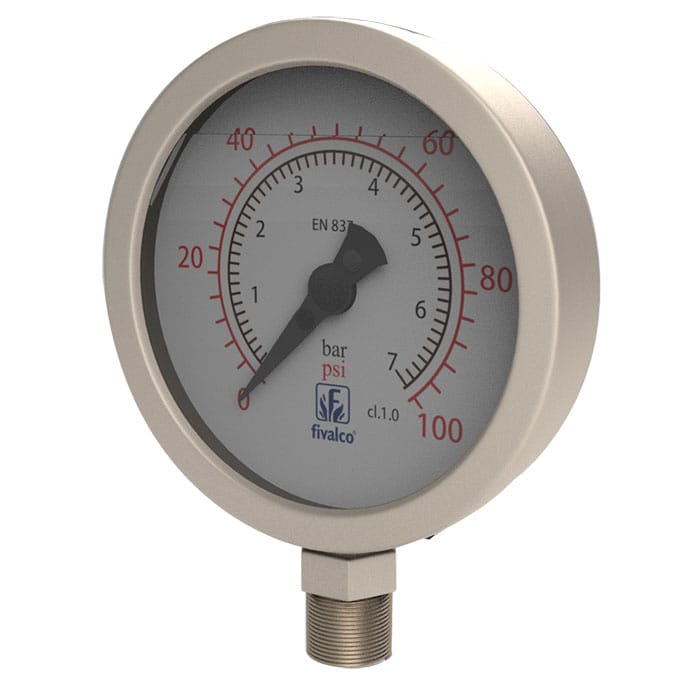

SPECIFICATIONS
| FP21 | FP22 | |
|---|---|---|
| Dial Size | 4″ (100mm) / 6″ (150mm) | 4″ (100mm) / 6 (150mm) |
| Case | Stainless Steel 304 | Stainless Steel 304 |
| Bezel | Stainless Steel 304 | Stainless Steel 304 |
| Socket | Brass | Stainless Steel 316 |
| Connection | 3/8″ Bottom Entry | 1/2″ Bottom Entry |
| Connection Standard | BSPT | BSPT |
| Lens | Polycarbonate | Toughened Glass |
| Pointer | Aluminium, Black | Aluminium, Black |
| Scale Unit | Dual Scale in bar &psi | Dual Scale in bar &psi |
| Bourdon Tube | Phosphor Bronze | Stainless Steel 316 |
| Movement | Brass | Stainless Steel 316 |
| Working Pressure | Maximum 75% of Full Scale Value | Maximum 75% of Full Scale Value |
| Process Temperature | 0°C … 60°C | 0°C … 60°C |
| Accuracy | +/- 1.0% of Full Scale Value | +/- 1.0% of Full Scale Value |
| Protection | IP 65 | IP 65 |
| Filling Liquid | Glycerin | Glycerin |
PRODUCT IDENTIFICATION CODE
| FP22 | – | 100 | x | 10 | . | 0/16 | |||
| Type/Model | Stainless Steel Casing and Brass Socket | FP11 | |||||||
| Stainless Steel Casing and Socket | FP22 | ||||||||
| Dial | 100mm (4″) | 100 | |||||||
| 150mm (6″) | 150 | ||||||||
| Connection | 10mm (3/8″) | 10 | |||||||
| 15mm (1/2″) | 15 | ||||||||
| Pressure Range | -760mmHg…4bar ; -30inHg…60psi | C/04 | |||||||
| 0…7bar ; 0…100psi | 0/07 | ||||||||
| 0…10bar ; 0…150psi | 0/10 | ||||||||
| 0…16bar ; 0…230psi | 0/16 | ||||||||
| 0…20bar ; 0…300psi | 0/20 | ||||||||
| 0…30bar ; 0…430psi | 0/30 |
