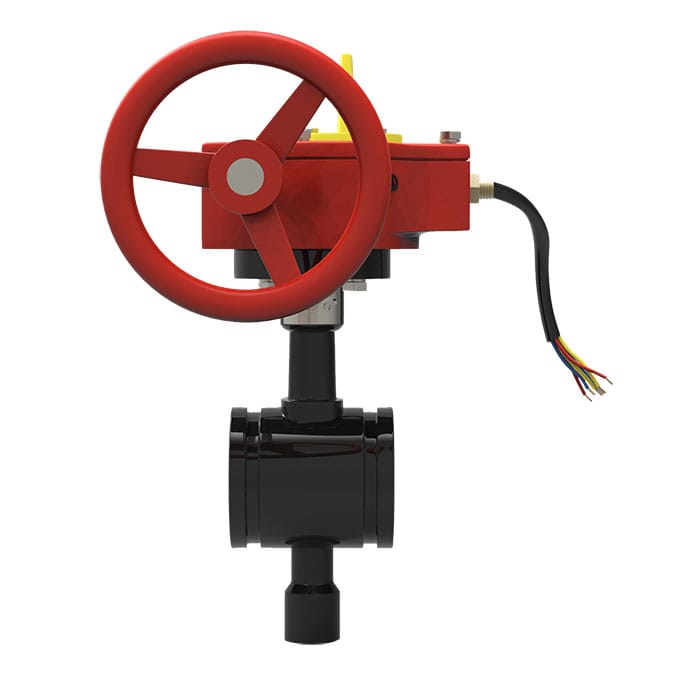

蝶阀的沟槽连接

300PSI Fig No.: FPB-300G

FEATURES & SPECIFICATIONS

Valve Standards:
Conforms to MSS SP-67 / BS EN593: 2009
Working Pressure:
300 PSI (21 BARS) -Non Shock Coldwater
Max. Test Pressure: 600 PSI (42.8 BARS)/FM Standard 1112
Temperature:
from -20°C to 110°C
Factory installed UL, listed double Tamper Switches
Valve Approved For Indoor and Outdoor Use
Fusion Bonded Epoxy Coated Interior and Exterior RAL 3000
Grooved Ends to suit BS or ANSI pipe size

分类：消防产品, 蝶阀

描述

Material Specification

Name	Material
Signal Gearbox	Ductile Iron ASTM A536 65-45-12
Lower Shaft Sealing Nut	WCB ASTM A216
Lower Shaft	Stainless Steel SS416
Disc	Dl+EPDM
Upper Shaft	Stainless Steel SS416
Body	Ductile Iron ASTM A536 65-45-12
Shaft Seal	EPDM
Upper Shaft Sealing Nut	WCB ASTM A216

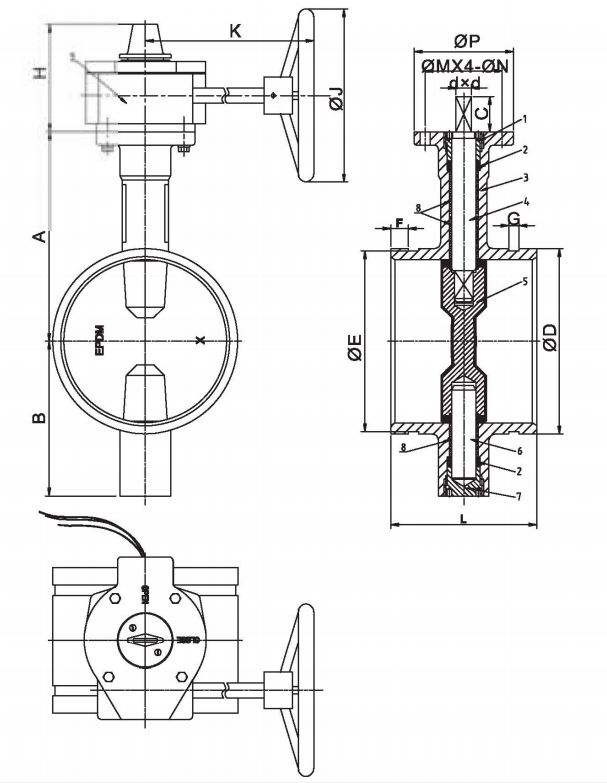

DIMENSIONS (mm)

Size	A	B	C	D	E	F	G	H	K	J	P	M	N	d	L
2″	110	85	32	60.3	57	15.9	7.9	111	218	152	90	70	9	10	88
2.5″	120	95	32	73/76.1	72.1	15.9	7.9	111	218	152	90	70	9	10	96.4
3″	140	100	32	88.9	84.9	15.9	7.9	111	218	152	90	70	9	11	97
4″	160	100	32	114.3	110.1	15.9	9.5	111	218	152	90	70	9	14	115.1
5″	170	125	32	141.3/139.7	137	15.9	9.5	111	218	152	90	70	9	14	132.4
6″	190	140	32	168.3/165.1	164	15.9	9.5	111	218	200	90	70	9	16	132.4
8″	230	175	32	219.1	214.6	19	11.1	126	232	290	125	102	12	19	147.4

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200
N.W.	8.20	8.40	9.10	10.10	13.80	14.70	28.70
Create Qty	35	30	25	25	18	16	8
