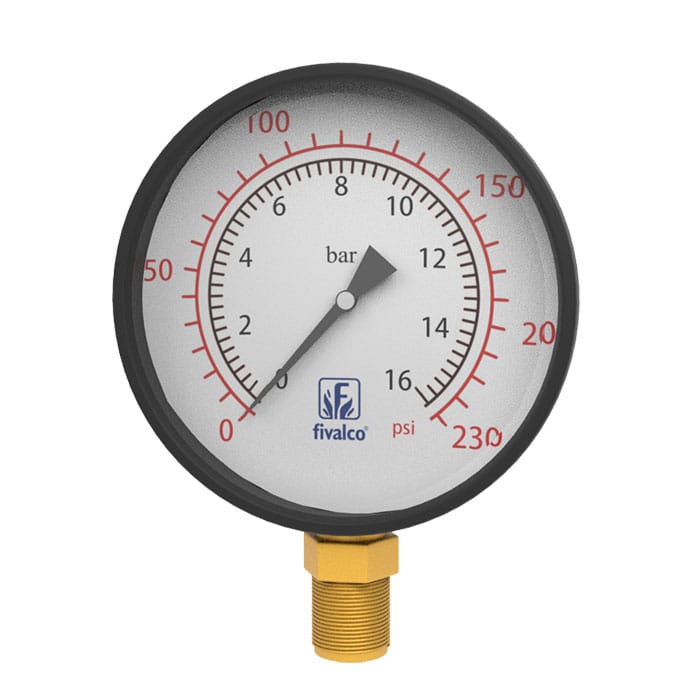

SPECIFICATIONS
Dial Size | 4″ (100mm) / 6″ (150mm) |
Case | Steel, Black |
Bezel | Steel |
Socket | Brass |
Connection | 3/8″ Bottom Entry |
Connection Standard | BSPT |
Lens | Glass |
Pointer | Aluminium, Black |
Scale Unit | Dual Scale in bar &psi |
Bourdon Tube | Phosphor Bronze |
Movement | Brass |
Working Pressure | Maximum 75% of Full Scale Value |
Process Temperature | -10°C …65°C |
Accuracy | +/- 3-2-3% ANSI/ASME Grade B |
Protection | IP 52 |
PRODUCT IDENTIFICATION CODE
FP11 | – | 100 | x | 10 | . | 0/16 | ||
Type/Model | Steel Casing with Brass Socket | FP11(mm) | ||||||
Dial | 100mm (4″) | 100 | ||||||
150mm (6″) | 150 | |||||||
Connection | 10mm (3/8″) | 10 | ||||||
15mm (1/2″) | 15 | |||||||
Pressure Range | -760mmHg…0 ; -30inHg…0 | V/00 | ||||||
760mmHg…4bar ; -30inHg…60psi | C/04 | |||||||
0…7bar ; 0…100psi | 0/07 | |||||||
0…10bar ; 0…150psi | 0/10 | |||||||
0…16bar ; 0…230psi | 0/16 | |||||||
0…20bar ; 0…300psi | 0/20 | |||||||
0…30bar ; 0…430psi | 0/30 |
