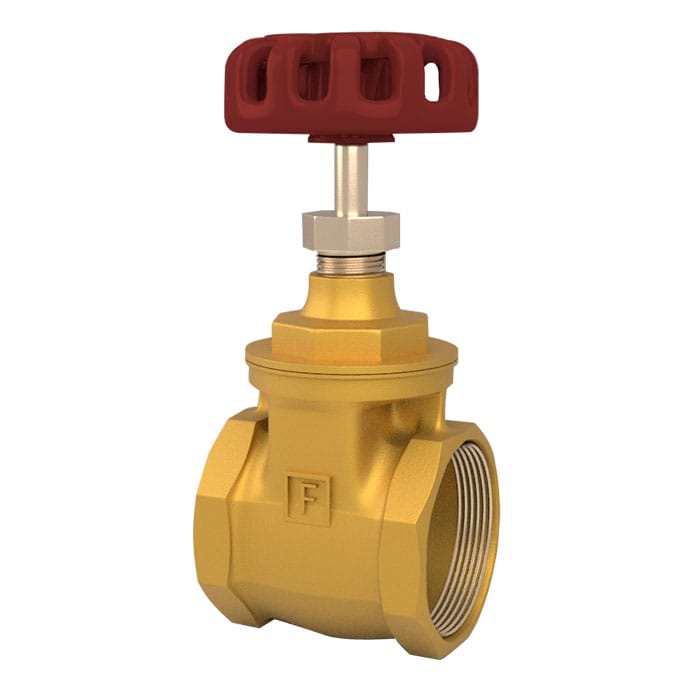

PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 16bar WOG Non-Shock
8.6bar Saturated Steam |
| Shell Testing Pressure | (x1.5) 24bar Hydrostatic |
| Seat Testing Pressure | (x1.1) 17.6bar Hydrostatic
5.5bar Air |
| Working Temperature | -10°C … 170°C |
| Suitable Media | Water, Oil & Gas |
MATERIAL SPECIFICATIONS
| Name | Material | Specification |
|---|---|---|
| Body | DZR Brass | EN 12165 CW602N |
| Bonnet | DZR Brass | EN 12165 CW602N |
| Disc | DZR Brass | EN 12165 CW602N |
| Stem | DZR Brass | EN 12165 CW602N |
| Packing | PTFE | |
| Packing Nut | Brass Rod | EN 12165 CW617N |
| Gland | Brass Rod | EN 12165 CW617N |
| Handwheel | Cast Iron | EN-JL 1040 |
| Gasket | PTFE |
DIMENSIONS
| DN | (mm)
(inch) |
15
1/2 |
20
3/4 |
25
1 |
32
1 1/4 |
40
1 1/2 |
50
2 |
65
2 1/2 |
80
3 |
100
4 |
| L | 43 | 49 | 55 | 62 | 64 | 75 | 88 | 98 | 107 | |
| H | 75 | 83 | 94 | 111 | 124 | 144 | 186 | 209 | 255 | |
| D | 53 | 53 | 58 | 72 | 72 | 78 | 96 | 110 | 130 |
