蝶阀对夹式

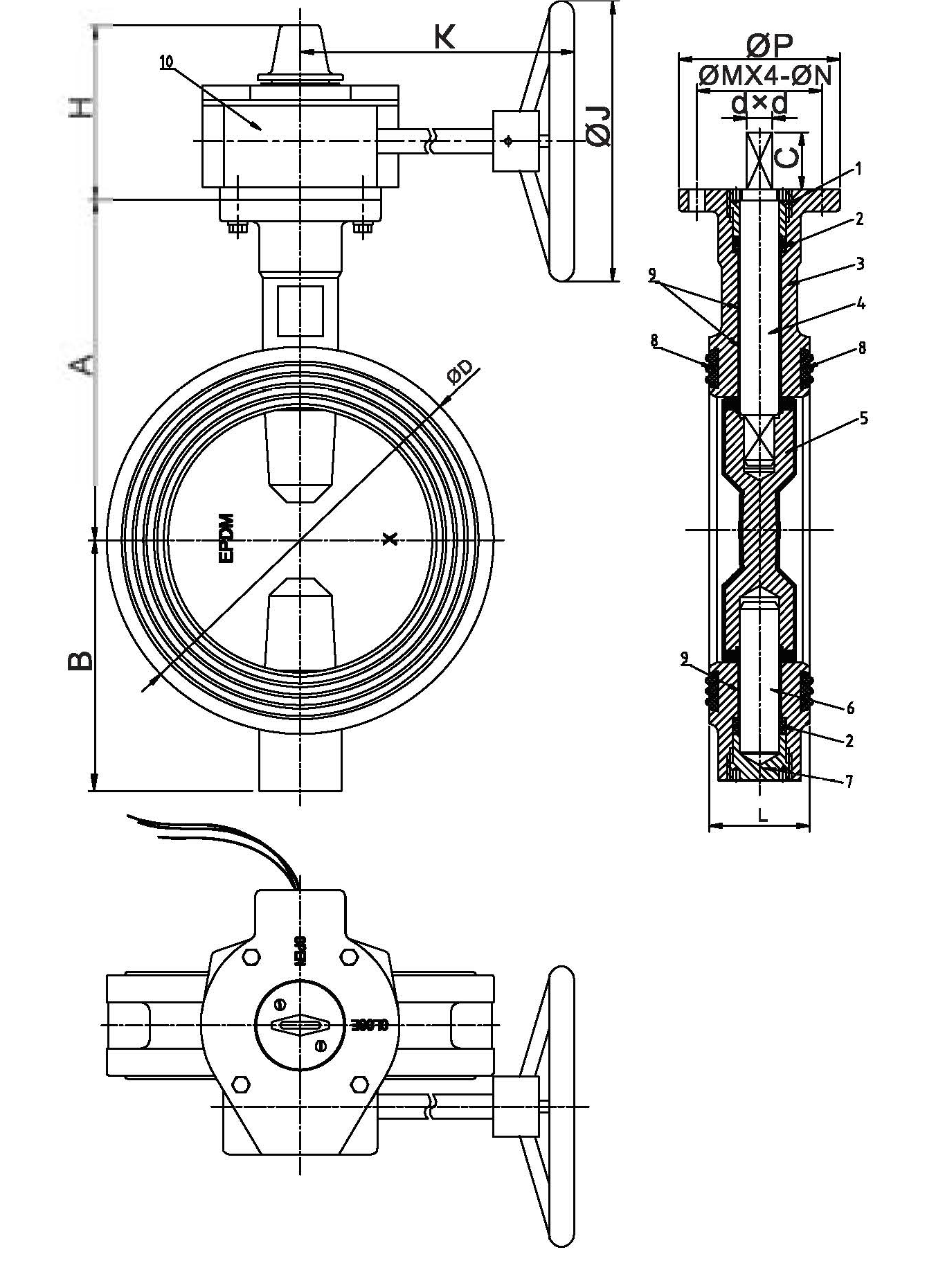

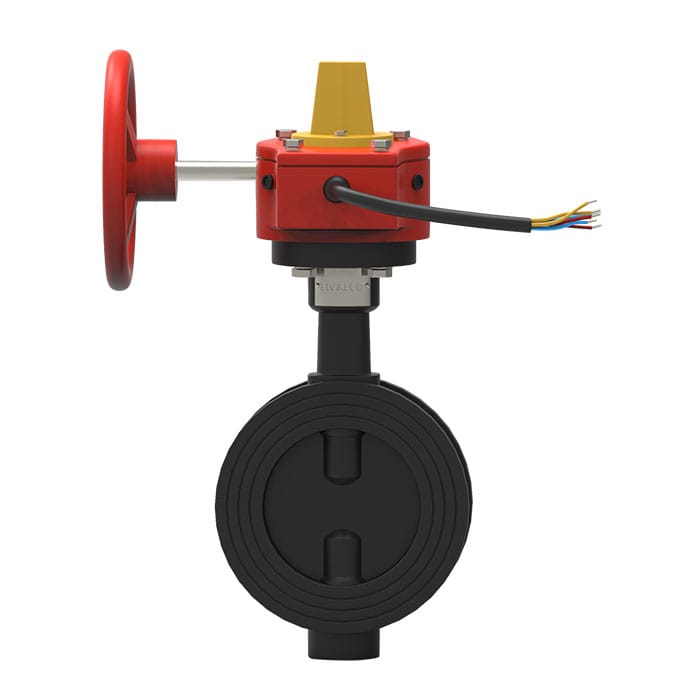

300PSI Fig No.: FPB-300W

FEATURES & SPECIFICATIONS

  • Valve Standards:
    Conforms to MSS SP-67/ BS EN593: 2009
  • Working Pressure:
    300 PSI(21 BARS) -Non Shock Coldwater
    Max. Test Pressure:600 PSI(42.8 BARS)
  • Temperature::
    from -20°C to 110°C
    Universal Water Type Butterfly Valve Suitable for connecting to ANSI B16.1 Class 125,ISO 2084/Din 2501
    PN16 & BS 4504 PN16 Flanges
    Factory installed UL, Listed double Tamper Switches
    Valve Approved For Indoor and Outdoor Use
    Fusion Bonded Epoxy Coated Interior and Exterior RAL 3000
