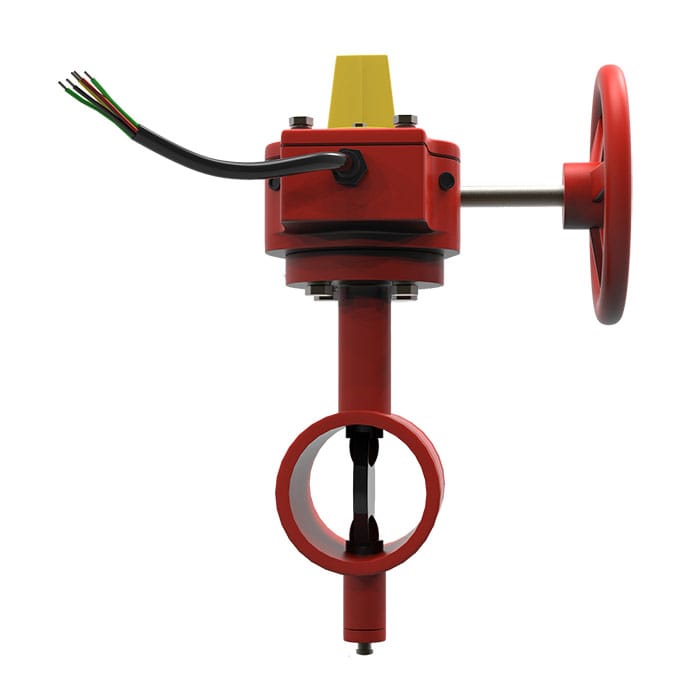

英标蝶阀沟槽连接

PN20 / 300PSI Fig No.: 1352

FEATURES & SPECIFICATIONS

Valve Standards:
Complies with EN593/BS5155/MSS SP-67
Working Pressure and Temperature:
Working pressure PN20/300PSI
Temperature from -10°C to 100°C for EPDM coated disc
Temperature from -10°c to 82°C for NBR coated disc
Top Flange:
Complies with ISO5211/1
End-to-End:
Dimensions according to MSS SP-67-2002
Grooved Type:
Grooved dimensions comply with Metric or ANSI Pipe Standards
Operator:
Gear operator: With two internal CE approved switches

分类：消防产品, 英标阀门

描述

Material Specification

Name	Material	EN Spec.
Body	Ductile Iron	EN-JS1050
Shaft	Stainless Steel	BS970 420S37
Disc	DI EPDM Coated DI NBR Coated	EN-JS1050 EN-JS1050
Bushing	PTFE	Commercial
O-Ring	EPDM/NBR	Commercial

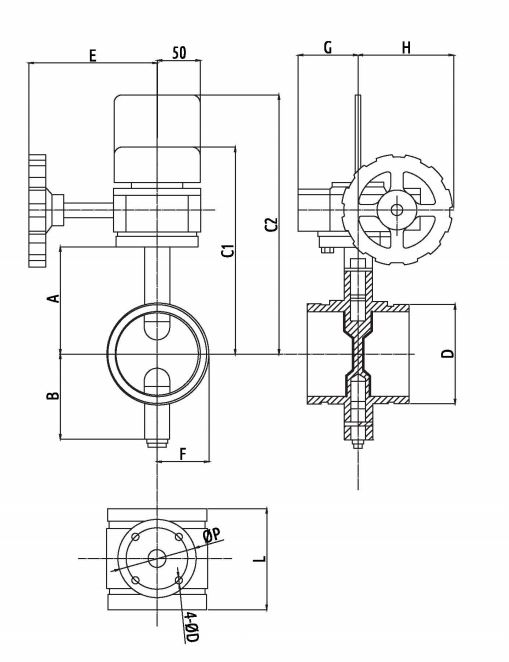

DIMENSIONS (mm)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
A	100.5	107	114.5	135	148.5	169	198	228.5	266
B	62	73/75	81	97	114	129	159	191	222
C1	201.5	208	215.5	236	249.5	270	299	329.5	367
C2	261.5	268	275.5	296	309.5	330	359	389.5	427
Pipe OD	60.3	73/76.1	88.9	114.3	141.3/139.7	168.3/165.1	219.1	273	323.9
E	147	147	147	147	147	147	147	197	197
F	50	50	50	59	72	85.5	112	138	164
G	71.5	71.5	71.5	71.5	71.5	71.5	71.5	75	75
H	109	108	109	109	109	145	145	166	166
L	81	96	96	116	147.6	148	135	159	165
P	70	70	70	70	70	70	70	102	102

Net Weight (kg) & Crate qty (pcs)

Size	2″/50	2.5″/65	3″/80	4″/100	5″/125	6″/150	8″/200	10″/250	12″/300
N.W.	6.50	7.00	7.50	7.50	14.00	16.00	20.00	32.00	48.00
Create Qty	100	100	80	80	42	42	30	14	14
