单球橡胶柔性接头

PN25 Fig No.: F83SJ

GENERAL

Absorbs and reduces vibration and shock in the system
Absorbs the stress generated by the expansion and compression of the pipe line
Provides flexibility to the system as allowance connection and installation error
Excellent resistance against pressure

FEATURES

Molded and vulcanised in hydraulic presses
Solid carbon steel internal reinforcing ring
With BS 4504 PN25 / EN 1092-2 PN25 / ANSI CLASS 150 floating flanges (Specify on order)

APPLICATIONS

Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Sewerage & Water Treatment, Marine Services, General Industries
Suitable for suction and discharge within specify working pressure.

分类：机械服务和暖通空调, 管件

描述

MATERIAL SPECIFICATIONS

Part	Material
Flanges	Carbon Steel
Reinforcing Ring	Carbon Steel
Inner Rubber	EPDM
Outer Rubber	EPDM
Reinforcing Cord	Nylon
Control Rod	Mild Steel

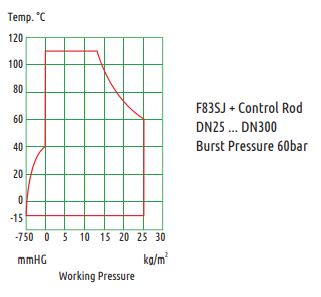

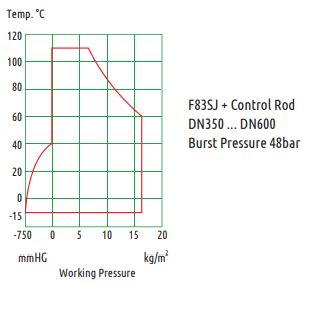

OPERATING PRESSURE & TEMPERATURE

DIMENSIONS AND MOVEMENTS

Diameter		Dimension	Pre-Gap	Allowable Movements(mm)
mm	inch	L(mm)	L(mm)	Axial Elongation(mm)	Axial Compression(mm)	Lateral Displacement(mm)	Angle of Deflection(“)
25	1	150	145-155	10	13	13	15
32	1¼	150	145-155	10	13	13	15
40	1½	150	145-155	10	13	13	15
50	2	150	145-155	10	13	13	15
65	2½	150	145-155	10	13	13	15
80	3	150	145-155	10	13	13	15
100	4	150	145-155	10	16	13	15
125	5	150	145-155	10	16	13	15
200	8	150	145-155	10	16	13	10
250	10	200	195-205	13	19	19	10
300	12	200	195-205	13	19	19	10
350	14	200	195-205	13	19	19	10
400	16	200	195-205	13	19	19	10
450	18	200	195-205	13	19	19	10
500	20	200	195-205	13	19	19	10
600	24	265	260-270	16	28	25	10
