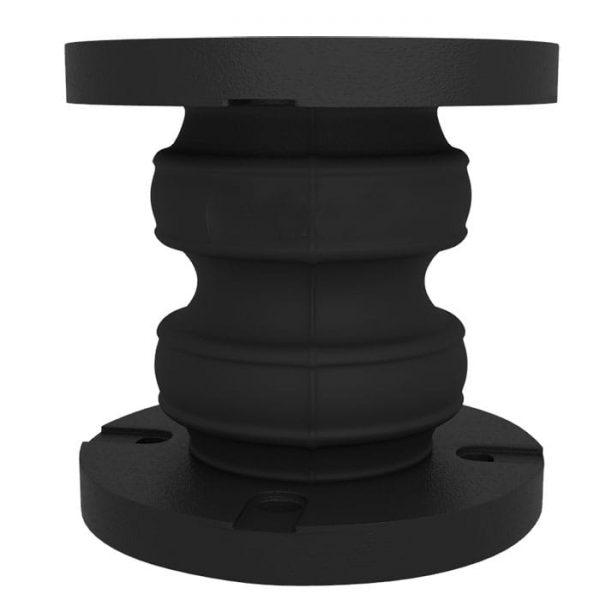

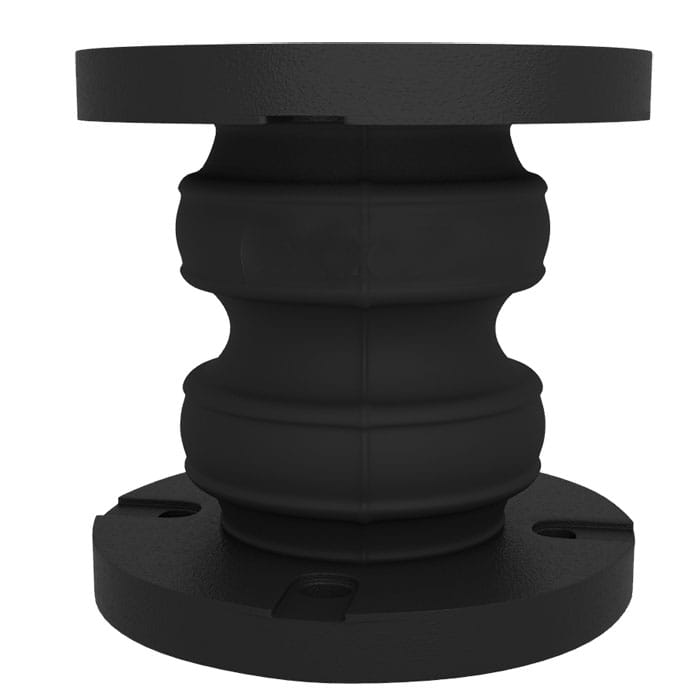

双球橡胶柔性接头

PN16 Fig No.: F83DJ

GENERAL

  • Absorbs and reduces vibration and shock in the system
  • Absorbs the stress generated by the expansion and compression of the pipe line
  • Provides flexibility to the system as allowance connection and installation error
  • Excellent resistance against pressure

FEATURES

  • Molded and vulcanised in hydraulic presses
  • Solid carbon steel internal reinforcing ring
  • With BS 4504 PN16 / EN 1092-2 PN16 / ANSI CLASS 150 floating flanges (Specify on order)

APPLICATIONS

  • Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, Sewerage & Water Treatment, Marine Services, General
    Industries
  • Suitable for suction and discharge within specify working pressure.
