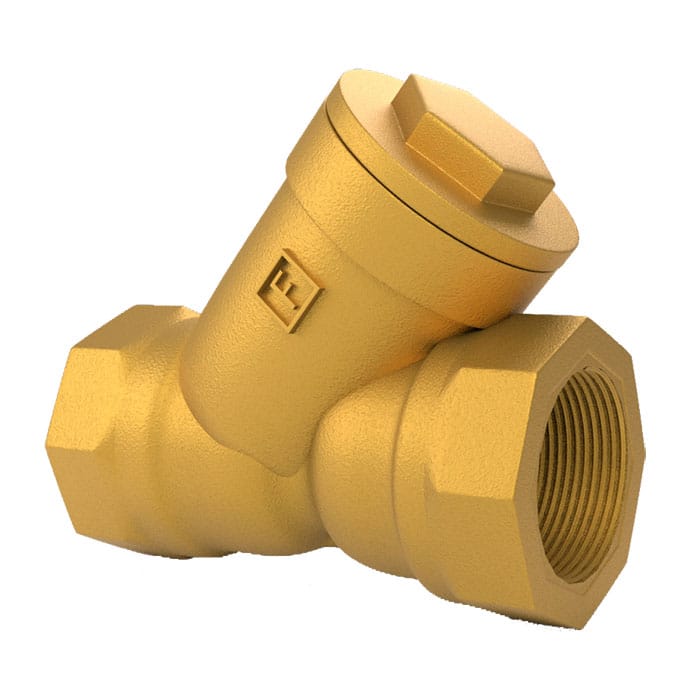

PRESSURE & TEMPERATURE RATINGS
| Working Pressure | 16bar WOG Non-Shock
8.6bar Saturated Steam |
| Testing Pressure | (x1.5) 24bar Hydrostatic |
| Working Temperature | -10°C … 170°C |
| Suitable Media | Water, Oil & Gas |
MATERIAL SPECIFICATIONS
| Part | Material | Specification |
|---|---|---|
| Body | DZR Brass | EN 12165 CW602N |
| Cap | DZR Brass | EN 12165 CW602N |
| Screen | Stainless Steel 304 | EN 1449 304S31 |
| Gasket | Non-Asbestos |
DIMENSIONS
| DN | (mm)
(inch) |
15
1/2 |
20
3/4 |
25
1 |
32
1 1/4 |
40
1 1/2 |
50
2 |
65
2 1/2 |
80
3 |
100
4 |
| L | 56 | 69 | 82 | 90 | 101 | 123 | 176 | 201 | 250 | |
| H | 41 | 48 | 58 | 66 | 74 | 92 | 136 | 146 | 189 |
