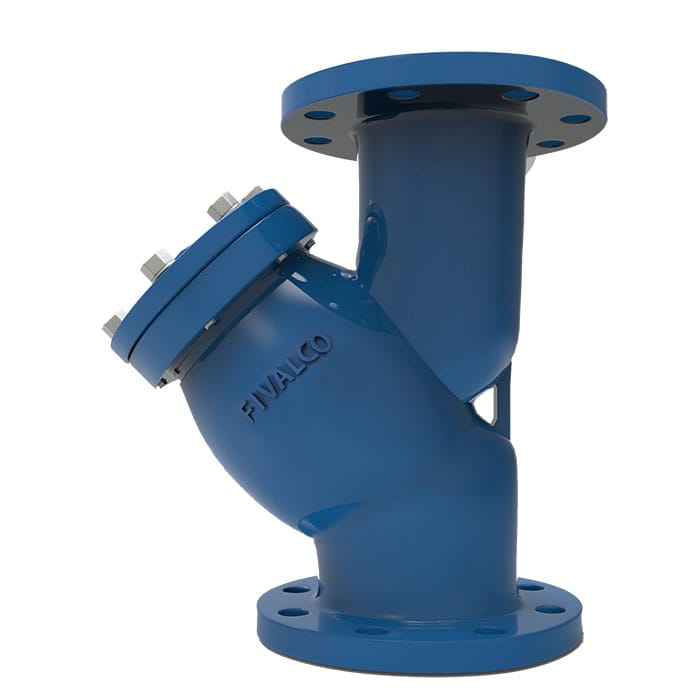

TECHNICAL SPECIFICATIONS
| Working Pressure | 25bar . |
| Testing Pressure | (x1.5) 37.5bar |
| Working Temperature | -10°C … 120°C |
| Suitable Media | Water, Oil & Gas |
Material Specification
| Part | Material | Specification |
| Body | Ductile Iron | EN-JS 1050 |
| Cover | Ductile Iron | EN-JS 1050 |
| Screen | Stainless Steel 304 | EN10088-3 1.4301 |
| Blow-Off Plug | S/Steel 304 (DN50…DN400) Carbon Steel (DN450…DN600) |
SCREENS DATA
| DN(mm) | Hole Dia. (mm) | Hole / inch2 |
| 50…150 | 1.5 | 104 |
| 200…350 | 2.5 | 26 |
| 400…600 | 3.5 | 22 |
DIMENSIONS
| DN | (mm)
(inch) |
50
2 |
65
21/2 |
80
3 |
100
4 |
125
5 |
150
6 |
200
8 |
250
10 |
300
12 |
350
14 |
400
16 |
450
18 |
500
20 |
600
24 |
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 | |
| H | 124 | 137 | 152 | 205 | 244 | 269 | 341 | 455 | 476 | 725 | 820 | 838 | 908 | 1078 | |
| Hole Plug Dia. | 10 | 10 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 20 | 20 | 50 | 50 | 50 |
