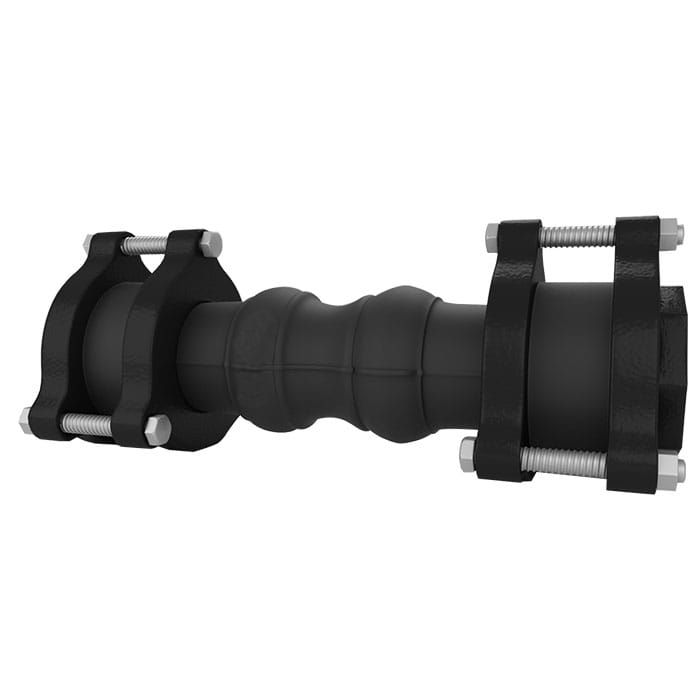

双球橡胶柔性接头
PN25 Fig No.: F85DJ
GENERAL

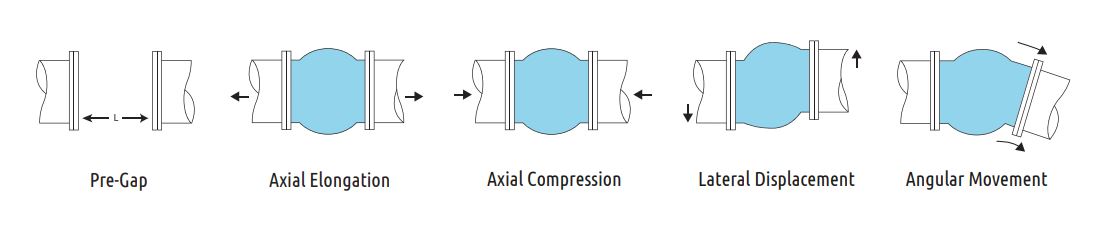

- Absorbs and reduces vibration and shock in the system
- Absorbs the stress generated by the expansion and compression of the pipe line
- Provides flexibility to the system as allowance connection and installation error

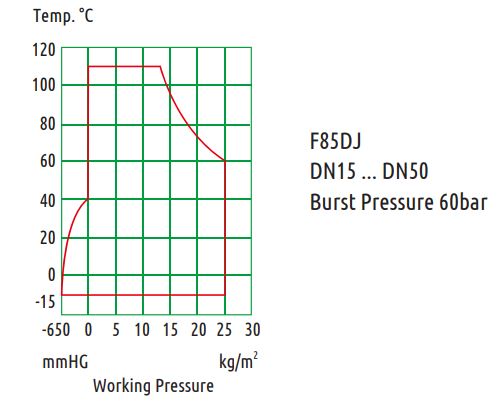

- Excellent resistance against pressure
FEATURES
- Molded and vulcanised in hydraulic presses

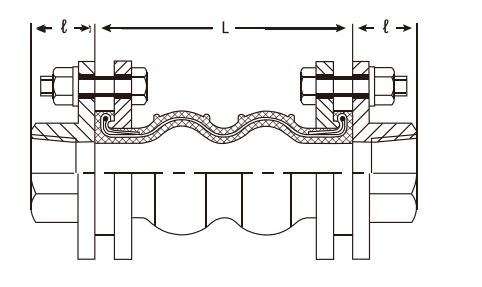

- Solid carbon steel internal reinforcing ring
- 3-Pin ductile iron screwed connection to EN10226-1 (ISO 7)
APPLICATIONS
- Building Services, Air-Conditioning, Fire-Protection, Cold Water Plumbing, General Industries
- Suitable for suction and discharge within specify working pressure.
