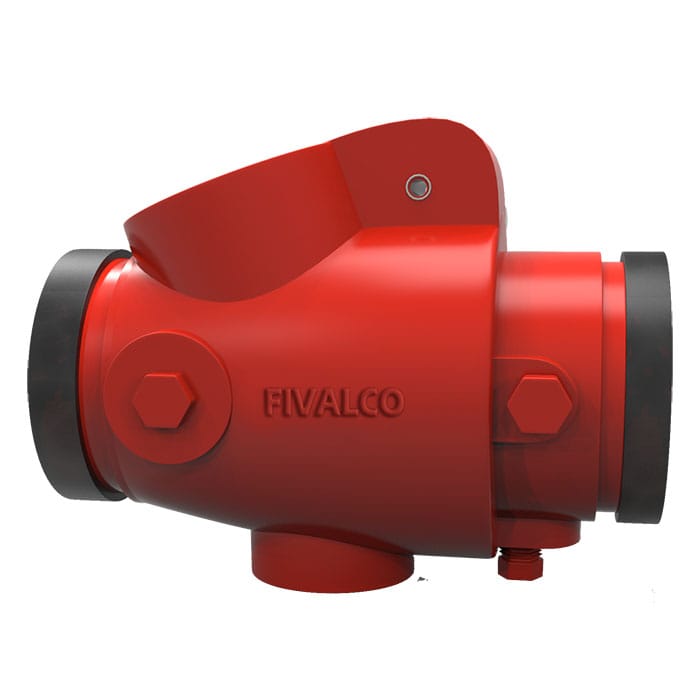

Swing Check Valve Grooved Ends

365PSI Fig No.: GSC-365-I


  • Valve Standard:
    Conforms to AWWA C606
  • Working Pressure:
    25 BARS / 365PSI
    Temperature: from 0°C to 80°C
    Fusion bonded epoxy coated RAL3000
  • Grooved Ends to suit ANSI/AWWA and BS Pipe Size
  • Description
    GSC-365-I is an non-return valve which permits water flow in one direction and prevents flow in reverse direction. This function is realized by a spring loaded stainless steel clapper with an EPDM rubber facing and an broadened bronzes eat, to provide a long service lime and leak-free sealing. It is widely used with various configurations in fire sprinkler systems, fire department connections, gravity pressure tank or by-pass connection etc.
