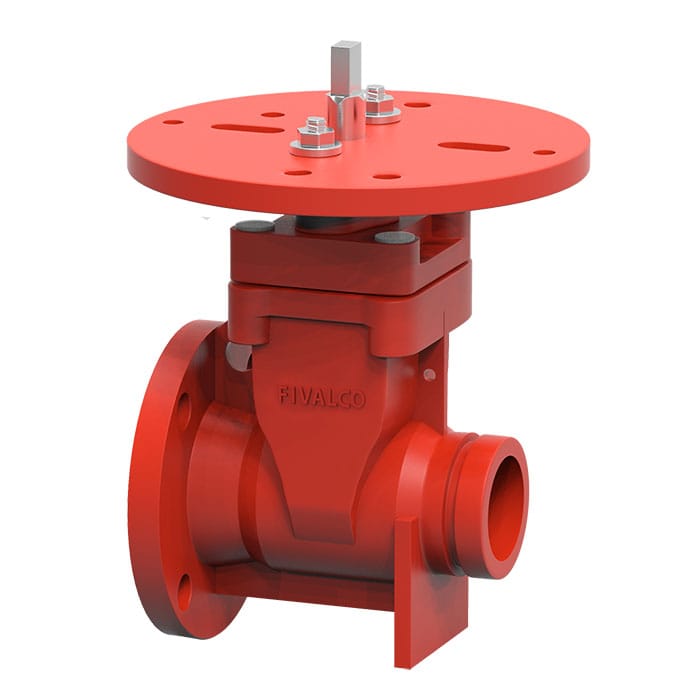

3288-LI-300-FG NRS Gate Valve Flanged-Grooved Ends

300PSI Fig No.: 3288-Ll-300-FG

FEATURES & SPECIFICATIONS

  • Valve Standard:
    Conforms to AWWA C515/BS5163
  • Working Pressure:
    21BARS / 300PSI
    Temperature: from -10°C to 120°C
    Fusion bonded epoxy coated interior and exterior RAL3002
  • Flanged Ends:
    ANSI B16.1 Class 125/ANSI B16.5 Class 150, EN1092-2 PN16
    BS10 TableD /TableE
  • Grooved End to suit ANSI/AWWA and BS Pipe Size
  • Stainless Steel Stem

NSF, FM Approved, UL & ULC Listed.
