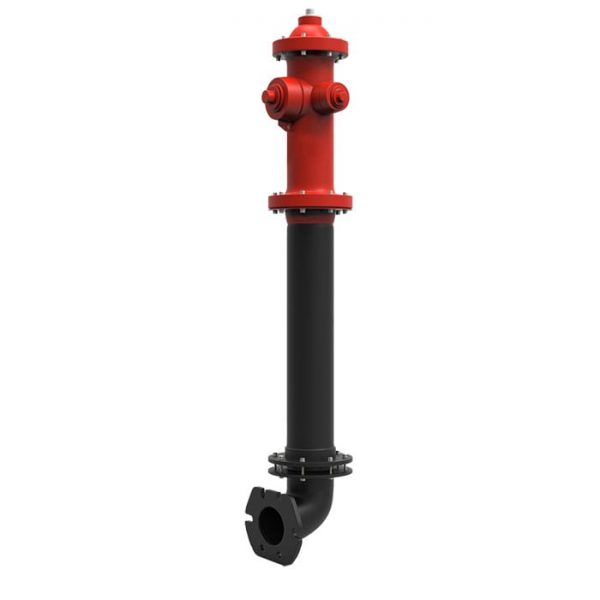

Dry Barrel Fire Hydrant

250PSI Fig No.: DBH2013-114(Flanged) / DBH2012-114(MJ)


    • Valve complies with AWWA C502
    • Working pressure 250PSI (17.2Bars)
    • Working temperature 0.6°C to 52°C


    • Seating type is resilient material to bronze seal construction
    • One pumper nozzle, 4.5-4NH threaded. Two hose nozzles, 2.5-7.5NH thread, Other size threads are available
    • 6″ mechanical joint designed to ANSI/AWWA C153/A21.53/ Flanged TO ANSI B16.1 Class125/EN 1092-2 PN16
