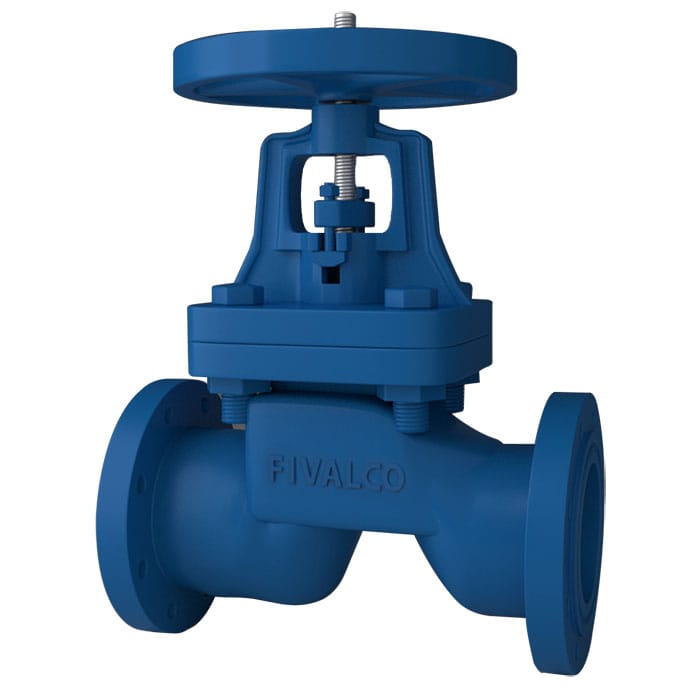

TECHNICAL SPECIFICATIONS
| Working Pressure | 16bar. |
| Shell Testing Pressure | (x1.5) 24bar |
| Seat Testing Pressure | (x1.1) 17.6bar |
| Working Temperature | -10°C … 120°C |
| Suitable Media | Water, Oil, Gas |
Material Specification
| Part | Material | Specification |
| Body | Cast Iron | EN-JL 1040 |
| Bonnet | Cast Iron | EN-JL 1040 |
| Disc | Stainless Steel 420 (DN15…DN50)Cast Iron (DN65…DN300) | BS970 420S37EN-JL 1040 |
| Disc Ring | Stainless Steel 420 | BS970 420S37 |
| Seat Ring | Stainless Steel 420 | BS970 420S37 |
| Stem | Stainless Steel 420 | BS970 420S37 |
| Packing | Graphite | Non-Asbestos |
| Hand Wheel | Cast Iron | EN-JL 1040 |

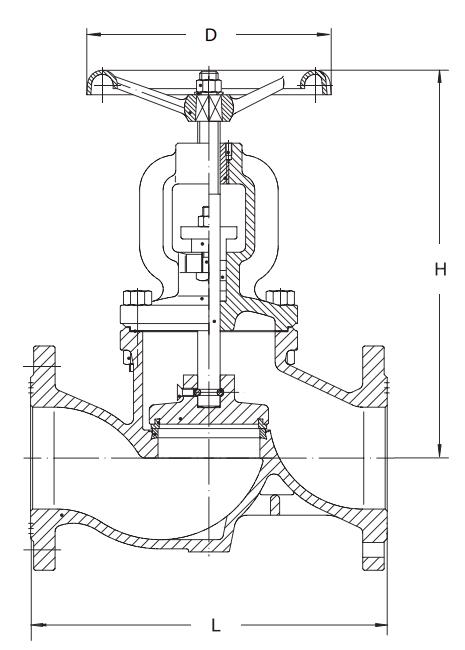

DIMENSIONS
| DN | (mm)
(inch) |
15
1/2 |
20
3/4 |
25
2 |
32
1 1/4 |
40
1 1/2 |
50
2 |
65
2 1/2 |
80
3 |
100
4 |
125
5 |
150
6 |
200
8 |
250
10 |
300
12 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 161.5 | 169 | 187 | 223 | 233.5 | 261.5 | 293 | 341 | 381 | 419 | 485 | 569 | 634 | 801 | |
| D | 100 | 100 | 120 | 120 | 140 | 140 | 200 | 200 | 240 | 280 | 315 | 360 | 400 | 400 |
